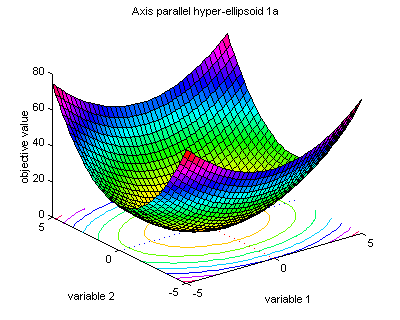

The axis parallel hyper-ellipsoid is similar to De Jong's function 1. It is also known as the weighted sphere model. Again, it is continuos, convex and unimodal.
f1a(x)=sum(i·x(i)^2),
i=1:n;
-5.12<=x(i)<=5.12
.
f(x)=0; x(i)= 0, i=1:n.
This function is implemented in objfun1a.
This function is derived from the axis parallel hyper-ellipsoid. There is a slight difference between these two function definitions. In the end the moved axis parallel hyper-ellipsoid function is more elliptic than the original function and the minimum of the function is not at x(i) = 0.
f1c(x)=sum(5*i·x(i)^2),
i=1:n;
-5.12<=x(i)<=5.12
.
f(x)=0; x(i)= 5*i, i=1:n.
This function is implemented in objfun1c.

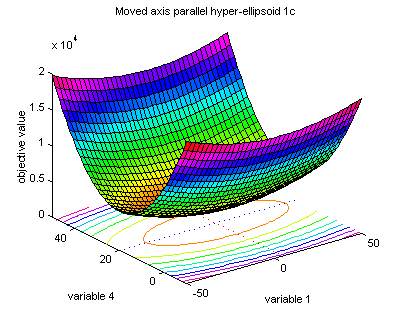

The figure below shows the mesh plot of the first and fourth variable. The objective values were calculated from the 4-dimensional function with second and third variable set to 0.
